Product name

Specification and model

Remark

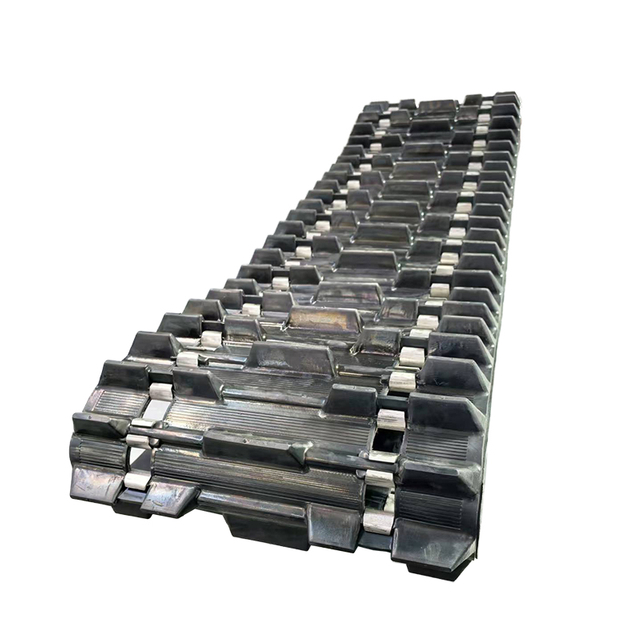

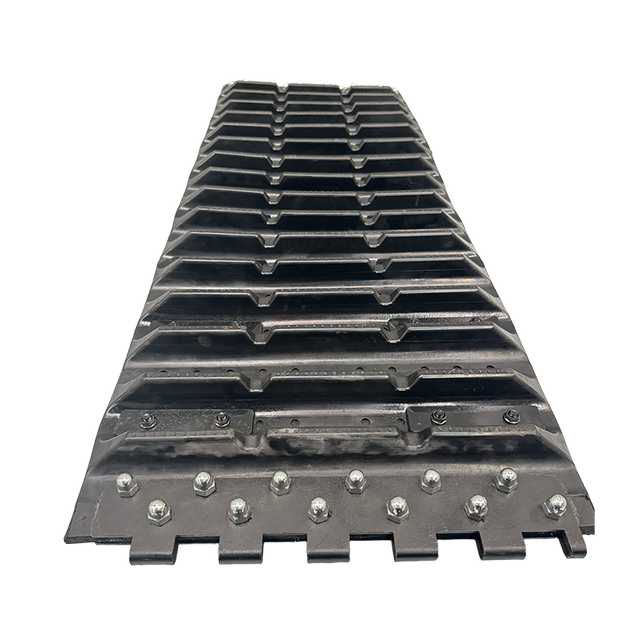

Rubber track

90mm(width)*60mm(spacing)
100 mm (width)*60 mm (pitch)
120 mm (width)*60 mm (pitch)
150mm (width)* 60mm (pitch)
150mm (width)* 72mm (pitch)
180 mm (width)*60 mm (pitch)
180 mm (width)*72 mm (pitch)
200mm (width)* 72mm (pitch)
230mm (width)* 72mm (pitch)
280 mm (width)*90 mm (pitch)
350 mm (width)*90 mm (pitch)

Track width, spacing as fixed parameters,
A specific number of links (length) can be customized.
Other width and spacing requirements can be customized in detail.

Project name

Performance index

Tensile strength (MPa)
Elongation at break (%)
Peel strength (iron and rubber)(N/cm)
Wear capacity (cm1.6km)
Hardness (Shore A)(degree)

≥ 18.0
≥ 400
≥ 140
≤ 0.5
70± 5

Hot air aging (70°X168 P)    Tensile strength reduction rate (%)
                                                  Elongation at break reduction rate (%)

≤ 8
≤ 32

Tensile strength of steel wire (N)
Track tension (kN)

≥ 5000
≥ 300
